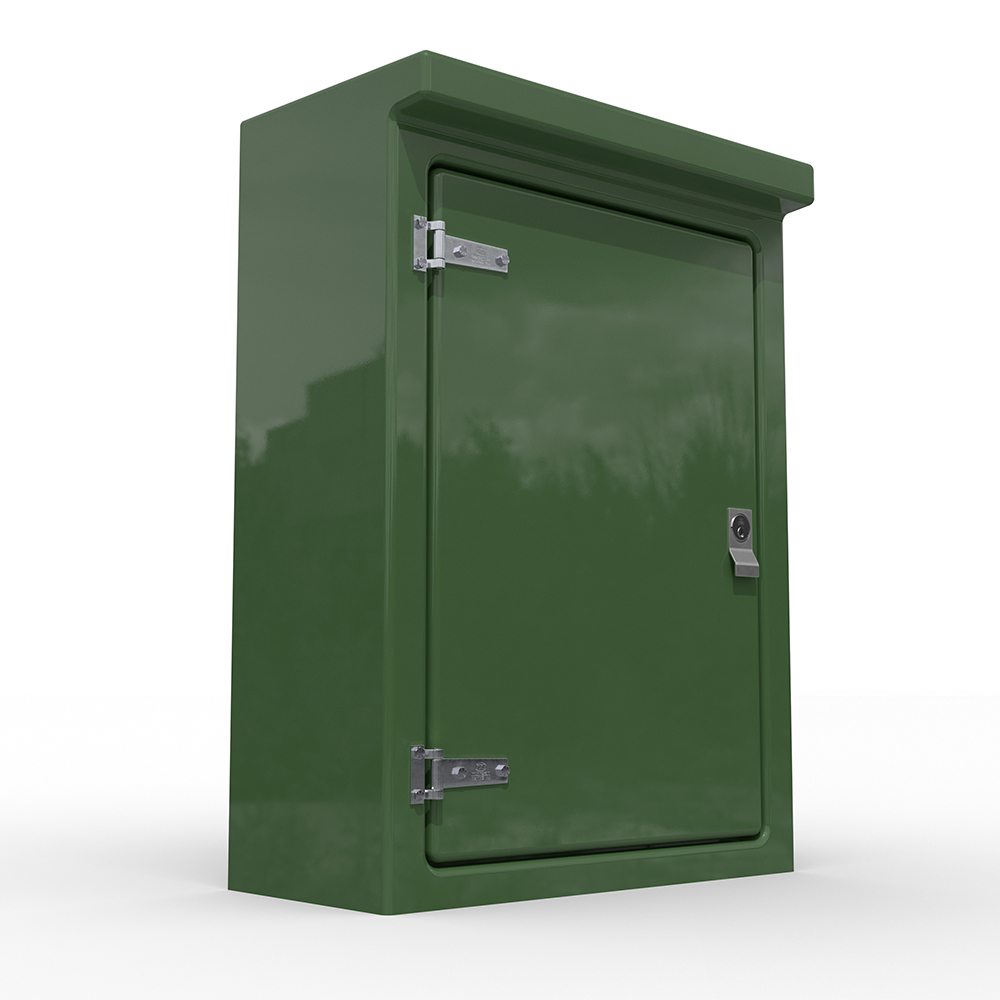

Feeder Pillar
Feeder Pillar
- "Other" colours should be specified from one of the following ranges: BS5252, RAL 5100 or RAL 1002. If you have queries regarding this, please contact us before placing your order.

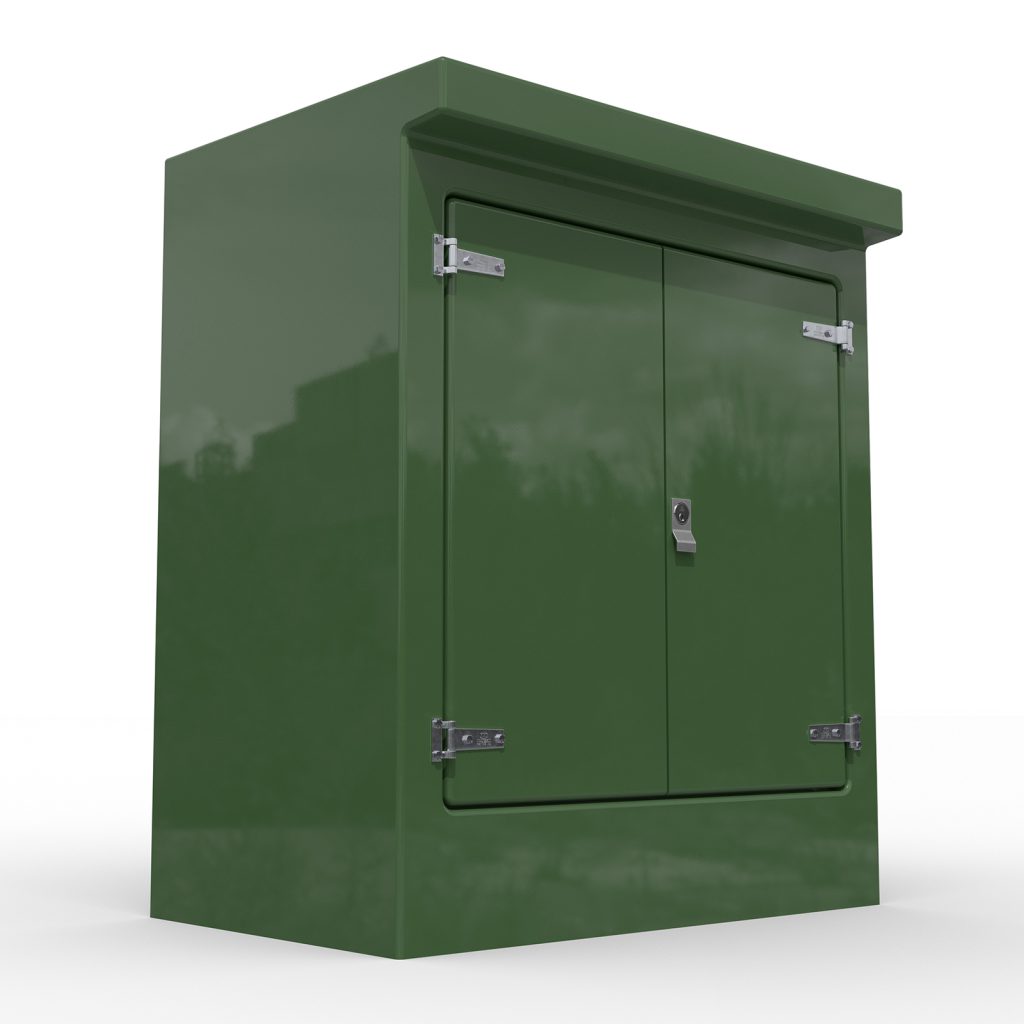

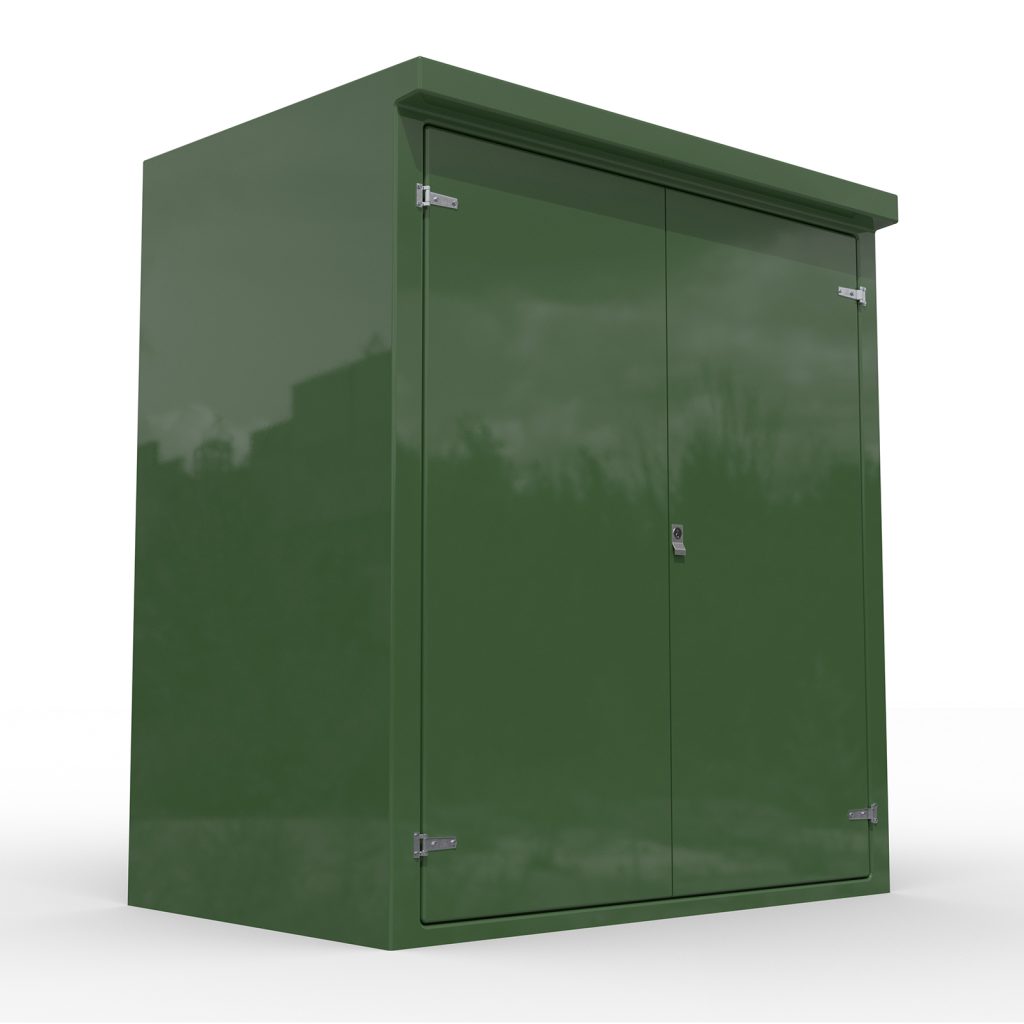

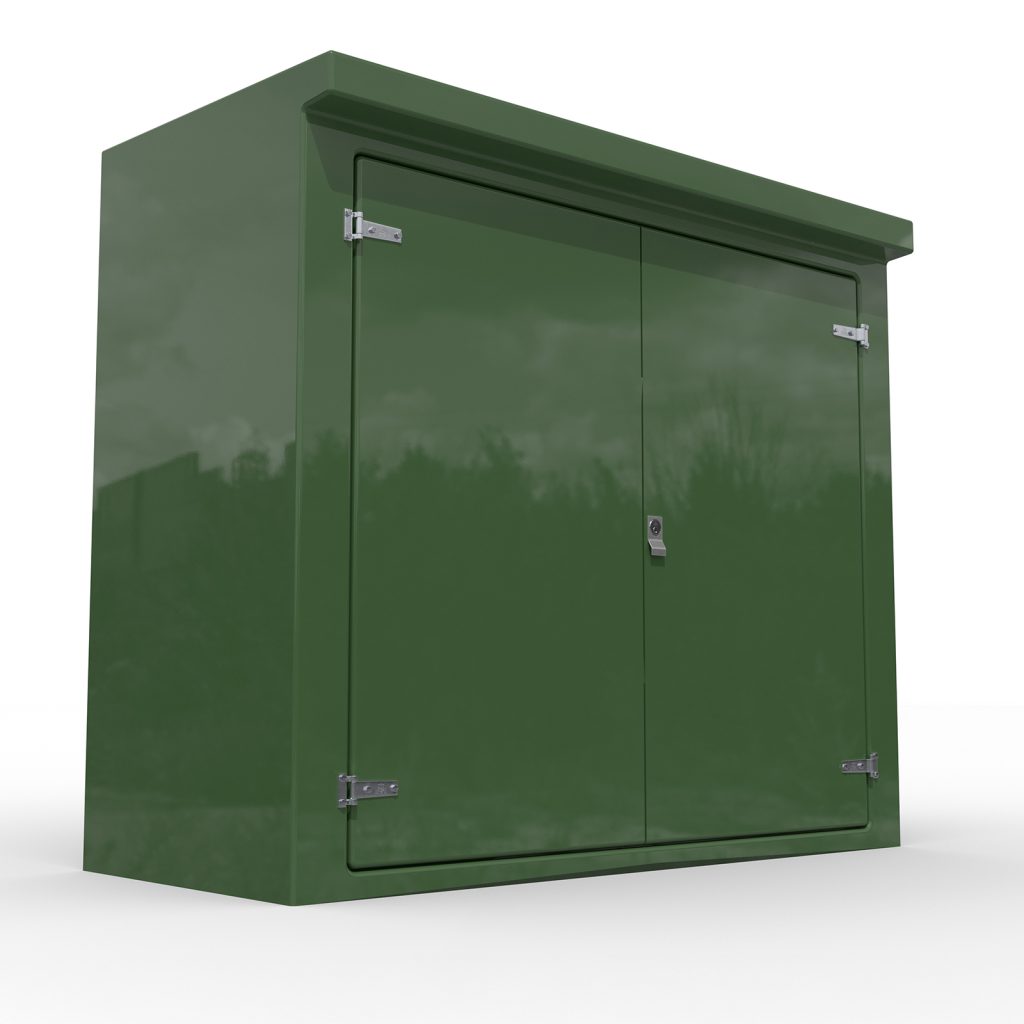

Single Skin GRP (Glass Reinforced Polymer) using self-extinguishing fire retardant resin to Class 2 BS 476 Part 2.
Low maintenance and non-corrosive.
Standard colours of stock cabinets available are BS 5252 14-C-39 Green and 10-A-07 Grey, though the full BS 5252 or RAL range is available.
The full range of cabinets are available in Steel, standard construction is 2mm pre galvanised sheet. (3mm and 5mm steel, Stainless Steel, Aluminium are available).
For Drawing in pdf format click here
|
Width (external) |
340 mm |
|
Width (internal) |
330 mm |
|
Height (max) |
860 mm |
|
Depth (external) |
210 mm |
|
Depth (internal) |
135 mm |
|
Depth (max) |
210 mm |
|
Door Information |
|
|
|
|
|
Clear Width (mm) |
240 mm |
|
Clear Height (mm) |
710 mm |
|
Sill |
|
|
Height (mm) |
95 mm |
Delivery is subject to our Shipping Policy.
